E-LINE Series — Cost-Effective Track Linear Lighting

E-LINE Track Linear Lighting System

Sleek flush design with just 35mm width — matches track rails perfectly. Delivers 160 lm/W efficacy with DIP switch adjustable wattage. Compatible with single-phase track systems for retail, supermarkets, warehouses, and commercial spaces.

160 lm/W 35mm Flush Design DIP Adjustable 5-Year Warranty CE / ENEC / SAA
Get E-LINE Quote & DIALux View Specifications

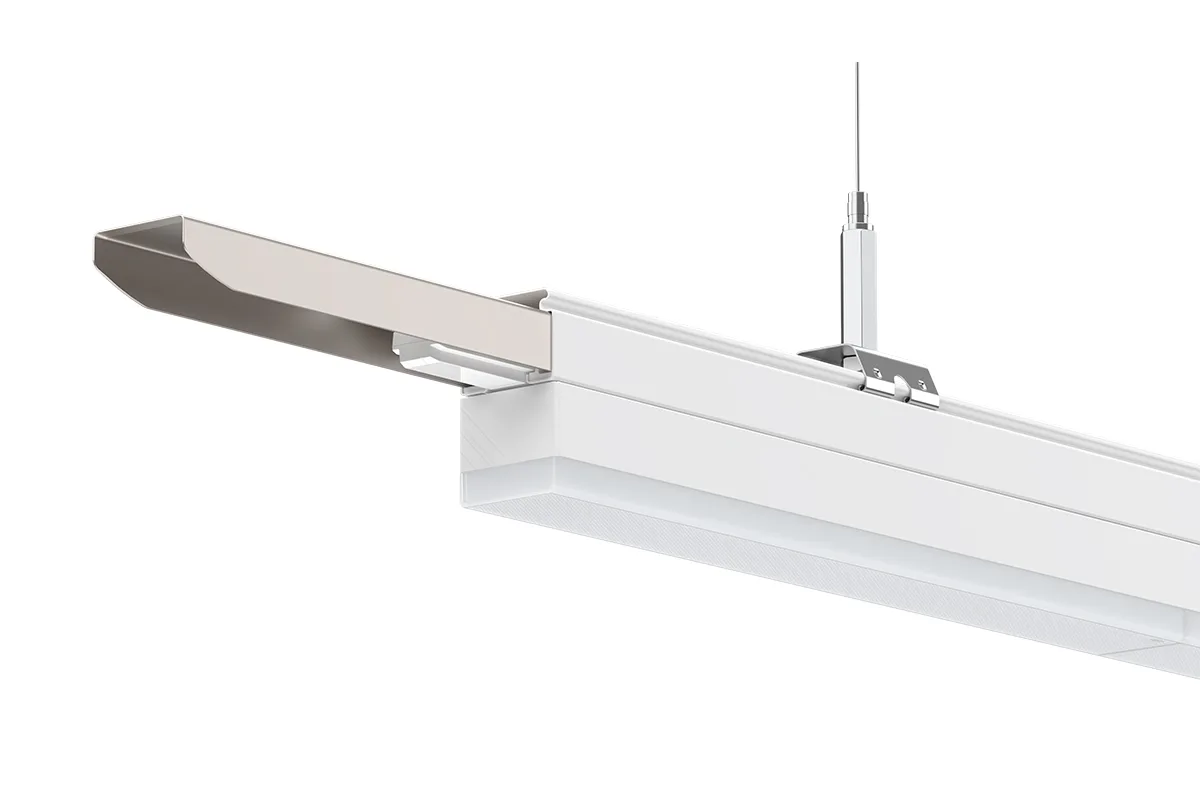

E-LINE Track Linear Lighting System 160 lm/W single-phase track linear light — FusionBrite E-LINE 35mm flush design
160 lm/W · 35mm Flush · DIP 35–60W

E-LINE Technical Highlights

Product-specific engineering details that set E-LINE apart in track linear lighting

Sleek & Flush Design

Lamp body matches the track width at just 35mm, offering a cleaner, more stylish look that integrates seamlessly with modern interiors.

Broad Compatibility

Fully compatible with standard single-phase track systems and lamps. Works with Global, Ivela, Eutrac, Unipro, Stucchi, Powergear, Staff and more.

Quick, Effortless Installation

Track connection is faster and easier, while maintaining perfect straight alignment. No tools required for mounting or repositioning.

Cost-Effective

Delivers superior value at a more competitive price point without compromising on quality, performance, or longevity.

DIP Switch Adjustable

On-site power adjustment from 35W to 60W, allowing flexible inventory management and adapting to different project requirements.

Compatible with: GlobalIvelaEutracUniproStucchiPowergearStaff | Single-phase 3-wire track | ON/OFF & 3CCT

Product Gallery

Sleek 35mm flush design — perfect integration with track rails

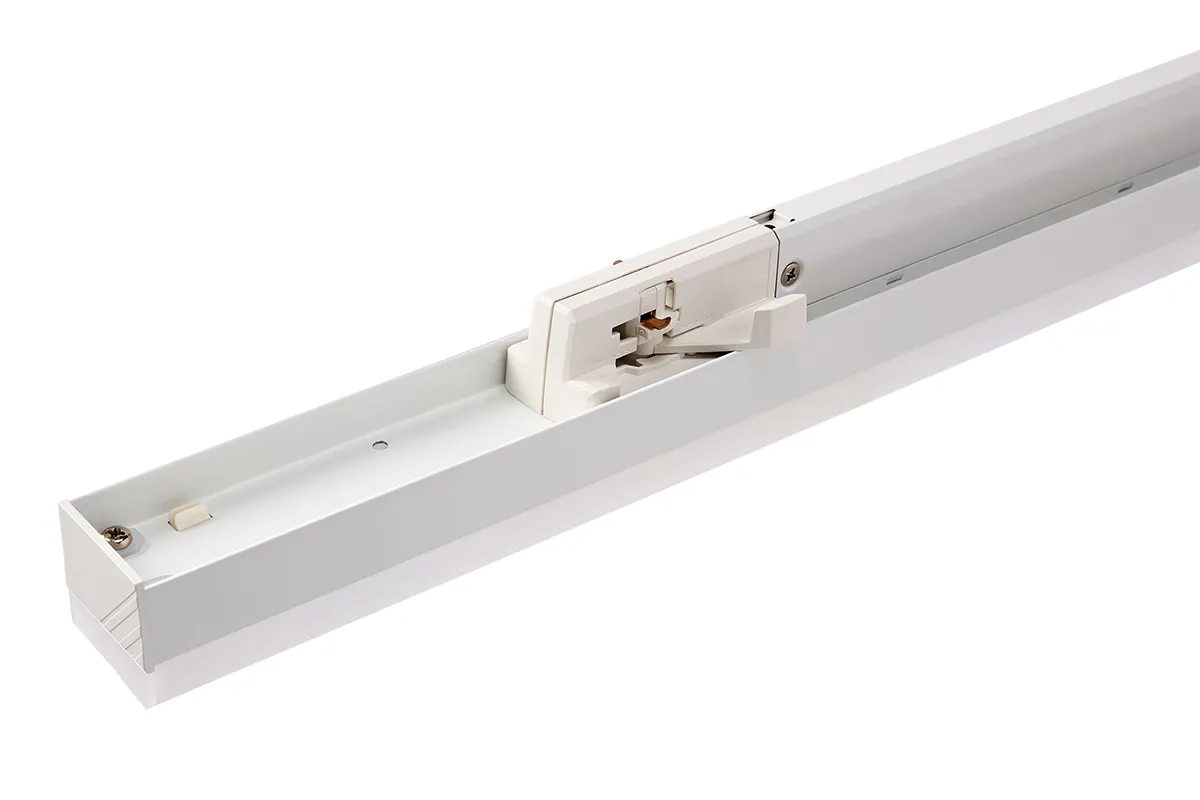

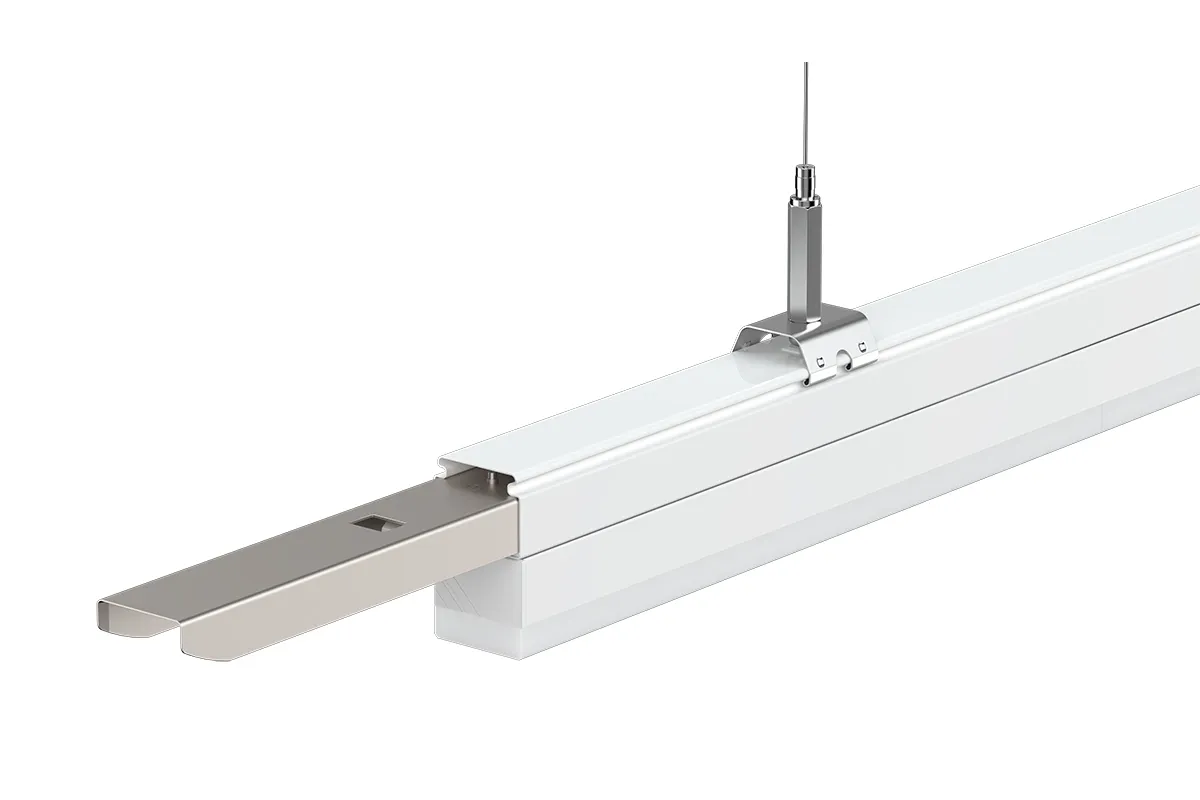

E-LINE 1: 35mm flush track linear light — FusionBrite E-LINE Track Linear Lighting System 160 lm/W
E-LINE 2: 35mm flush track linear light — FusionBrite E-LINE Track Linear Lighting System 160 lm/W
E-LINE 3: 35mm flush track linear light — FusionBrite E-LINE Track Linear Lighting System 160 lm/W
E-LINE 4: 35mm flush track linear light — FusionBrite E-LINE Track Linear Lighting System 160 lm/W
E-LINE 5: 35mm flush track linear light — FusionBrite E-LINE Track Linear Lighting System 160 lm/W
E-LINE 6: 35mm flush track linear light — FusionBrite E-LINE Track Linear Lighting System 160 lm/W

Technical Specifications

Parameter 1200mm (50W) 1500mm (60W)
Outer Dimensions1196 × 35 mm1494 × 35 mm
Input Power50W60W
DIP Switch Options35 / 40 / 45 / 50W45 / 50 / 55 / 60W
Lumen Output8,000 lm9,600 lm
Input Voltage220 - 240VAC
PF (230V, 50Hz)≥ 0.95
Efficacy160 lm/W
CCT2700 / 3000 / 3500 / 4000 / 5000 / 5700 / 6500K
CRI (Ra)>80Ra or >90Ra
R9>0
SDCM<3
Beam AngleFD-120°
DimmingON/OFF · 3CCT Selectable
Lifetime (L70)100,000 hrs
Flicker Percent≤5%
IP RatingIP20
Ambient Temperature (Ta)-25°C ~ 40°C
Warranty5 years

Frequently Asked Questions

What track systems is E-LINE compatible with?
E-LINE is fully compatible with standard single-phase track systems including Global, Ivela, Eutrac, Unipro, Stucchi, Powergear, Staff — covering most European and Asian track standards.
How does the DIP switch adjust power?
The DIP switch driver allows on-site power adjustment between 35-50W (for 1200mm) and 45-60W (for 1500mm), with four selectable wattage levels per length.
Is E-LINE suitable for cold storage or damp environments?
E-LINE is rated IP20 for indoor use. For cold storage or damp environments, we recommend our T-LINE series with IP40 rating or custom IP65 options available on request.
Does E-LINE support DALI dimming?
The standard E-LINE driver is ON/OFF with 3CCT selectable. DALI and 1-10V dimming versions are available upon request for projects requiring automated lighting control.
What certifications does E-LINE hold?
E-LINE is certified with CE, CB, ENEC, SAA, and ETL — ensuring compliance with safety and performance standards across Europe, Australia, North America, and other global markets.

Specify E-LINE for Your Track Lighting Project

Get a model-specific quote, IES/LDT photometrics, and free DIALux simulation for retail, supermarket, or warehouse.
