G-LINE Waterproof LED Linear Light
Engineered for harsh environments. G-LINE combines IP65 waterproof protection, IK08 impact resistance, and up to 180 lm/W efficacy in a continuous 8-wire trunking rail system — purpose-built for industrial workshops, warehouses, and outdoor covered areas.
G-LINE Technical Highlights
Product-specific engineering details engineered for harsh environments

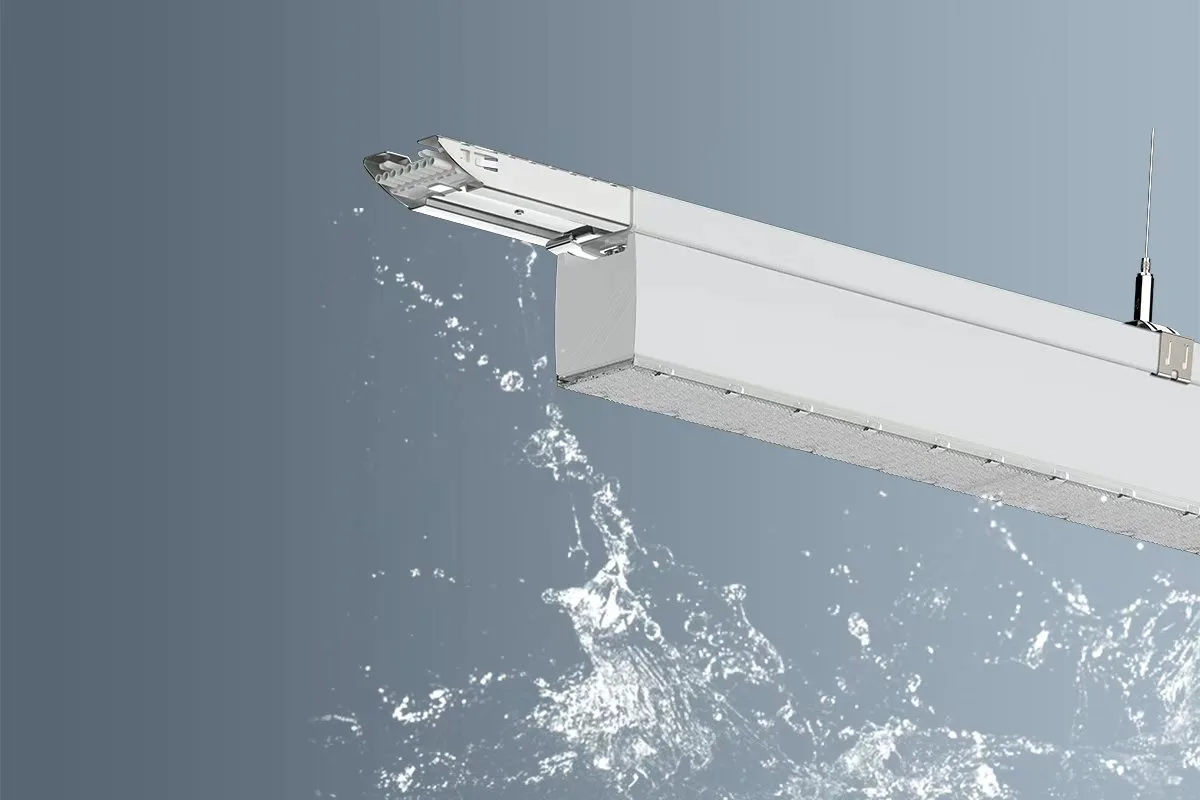

IP65 + IK08 Protection
Waterproof and impact-resistant housing designed for harsh industrial and outdoor environments.
DIP 40-120W Adjustable
Select output power via DIP switch on driver — one SKU covers multi-scenario wattage needs.
Up to 180 lm/W
High-efficacy LED engine delivers up to 21,600 lm at 120W, cutting energy cost dramatically.
Tool-Free Installation
Plug-and-play 8-wire trunking system — continuous line, fast on-site assembly.
4 Beam Angles
SP-30° / NR-60° / WD-90° / FD-120° optics for precise light distribution.
8-Wire Trunking & Wiring Modes
Pre-assembled plug-in system — power, dimming and emergency on a single rail
- • 3-phase pre-selection — Movable male connector pin — assign luminaire to L1, L2 or L3 in the rail.
- • 8-core through-wiring — 2.5mm² for power (L1/L2/L3/N/PE), 1.5mm² for dimming (DALI or 1-10V).
- • Max 16A per circuit — Up to 50 pcs of 1500mm 70W luminaires in one serial row at 220VAC.
- • Side or end feed-in — Flexible power input points via dedicated trunking rail elements.
- • Self-supporting connectors — Suspension points up to 3m apart — fewer hangers, faster installation.
- • Plug-in system — Pre-assembled connectors combine electrical and mechanical connection in one step.
Wiring Mode Examples (8-wire)
Mode 1 · 3-Phase + Emergency
CHR / L1 / N / L2 / PE / L3 / EL1 / EN1
Mode 2 · 3-Phase + DALI
CHR / L1 / N / L2 / PE / L3 / DA/L / DA/N
Mode 3 · 3-Phase + 1-10V
CHR / L1 / N / L2 / PE / L3 / DIM+ / DIM-
Order example:
CGL-15120-40NR-08WH-DA
→ 1.5m · 120W · 4000K · narrow 60° · 8-wire · white · DALI
Order Code Structure
Fusionbrite G linear trunking rail
Length: 1500mm
Input power: 120W
CCT: 4000K
Beam angle: Narrow 60°
8-wire trunking rail
Color: White (WH) / Black (BK)
Function: DALI dimming
Emergency Lighting Options
Three configurable emergency solutions — centralized or self-contained
① External · Constant Current
ON/OFF driver connected to central backup battery or UPS via EL/EN. AC 220V → 100% brightness; DC 220V → 15% brightness.
② External · DALI Driver
DALI driver connected to mains + central backup battery/UPS. AC → 100%; DC detected → 15% for code-compliant emergency egress.
③ Internal · Battery Pack
Built-in battery options: 2000mAh → 3W / 3h, or 4000mAh → 6W / 3h. Includes test switch and LED status indicator.
Includes emergency test switch and LED status indicator (Charge / Function Test / Duration Test / Inhibit / Lamp Failure / Battery Failure / Emergency Mode).
Product Gallery

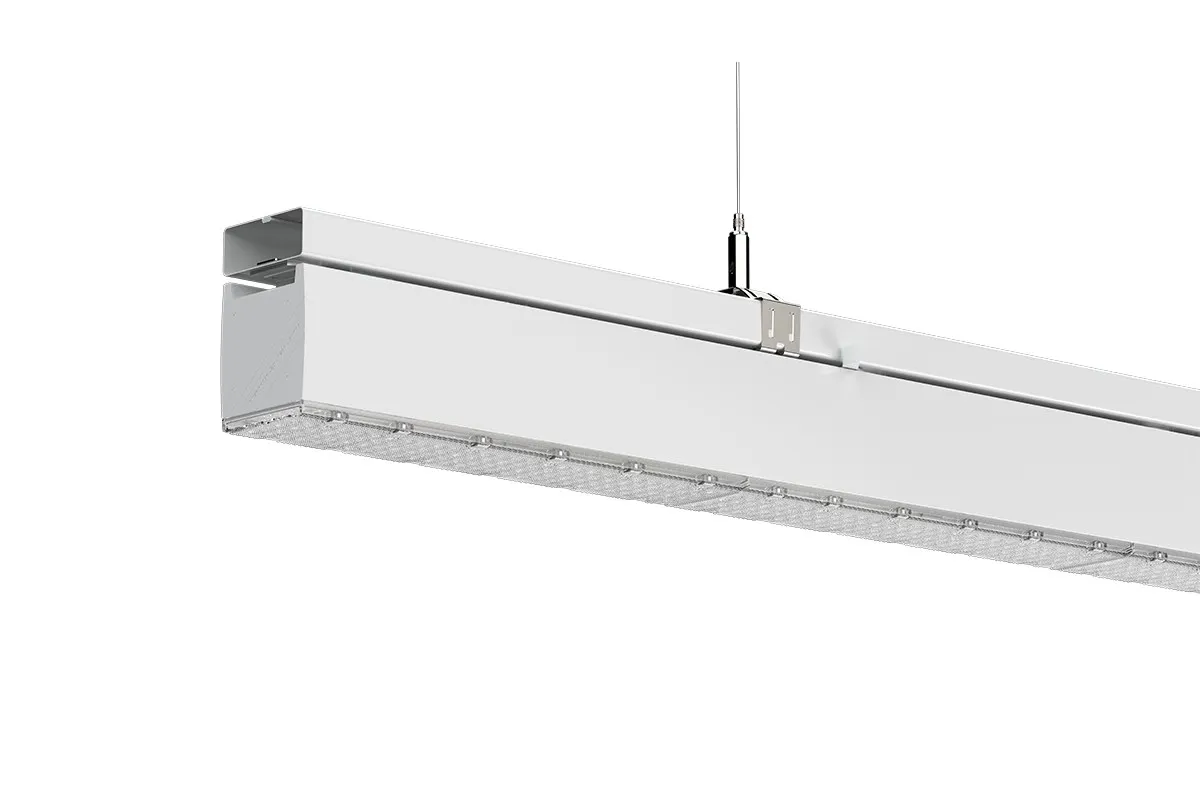

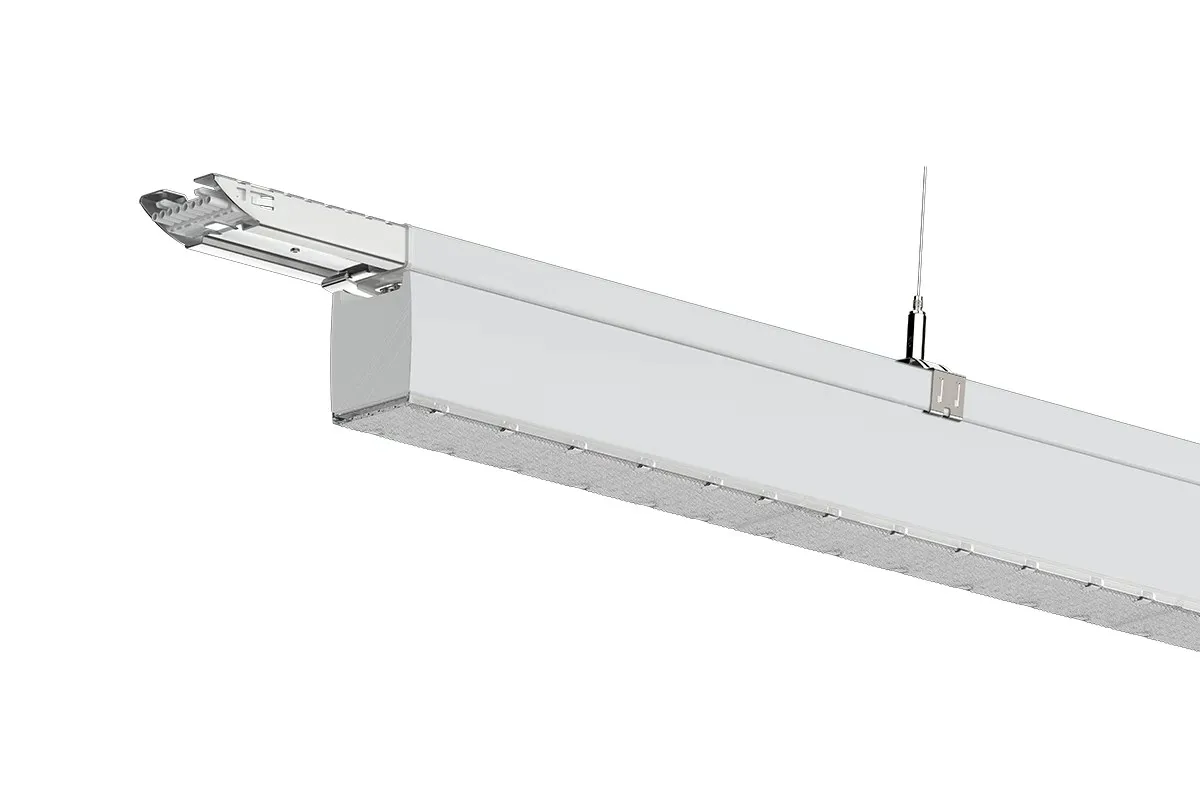

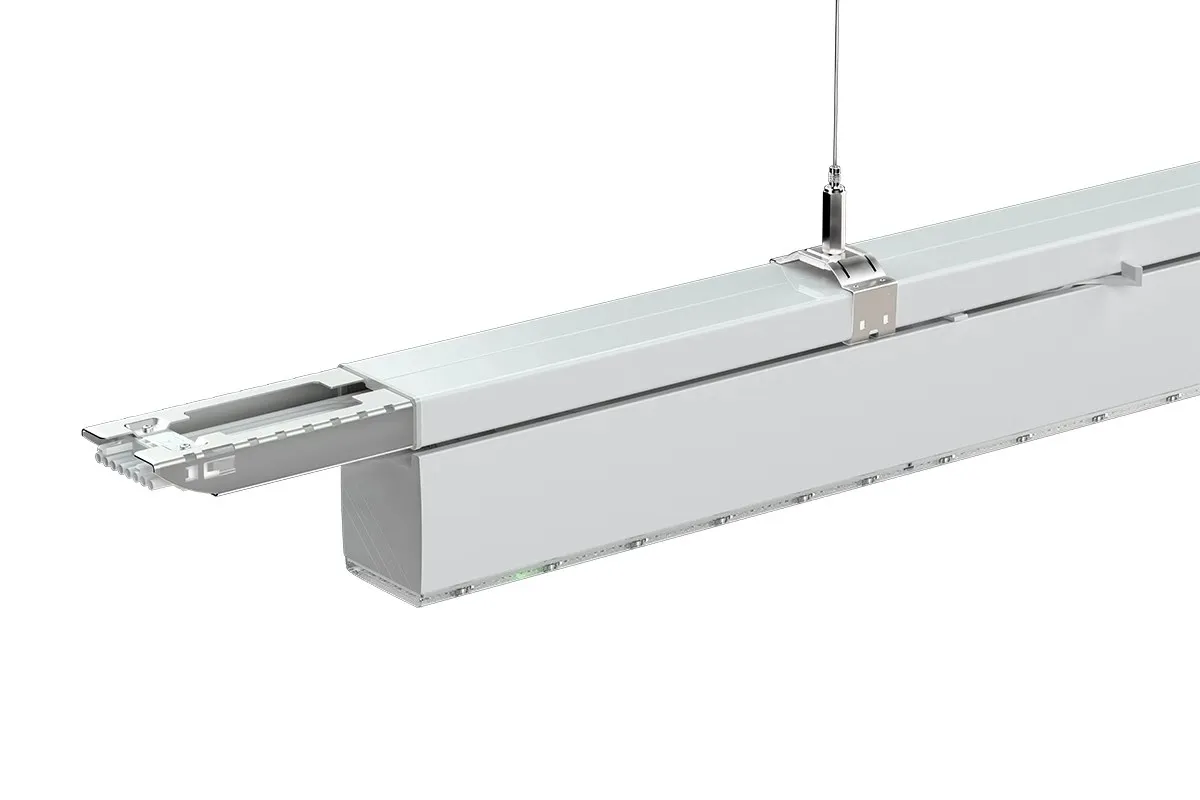

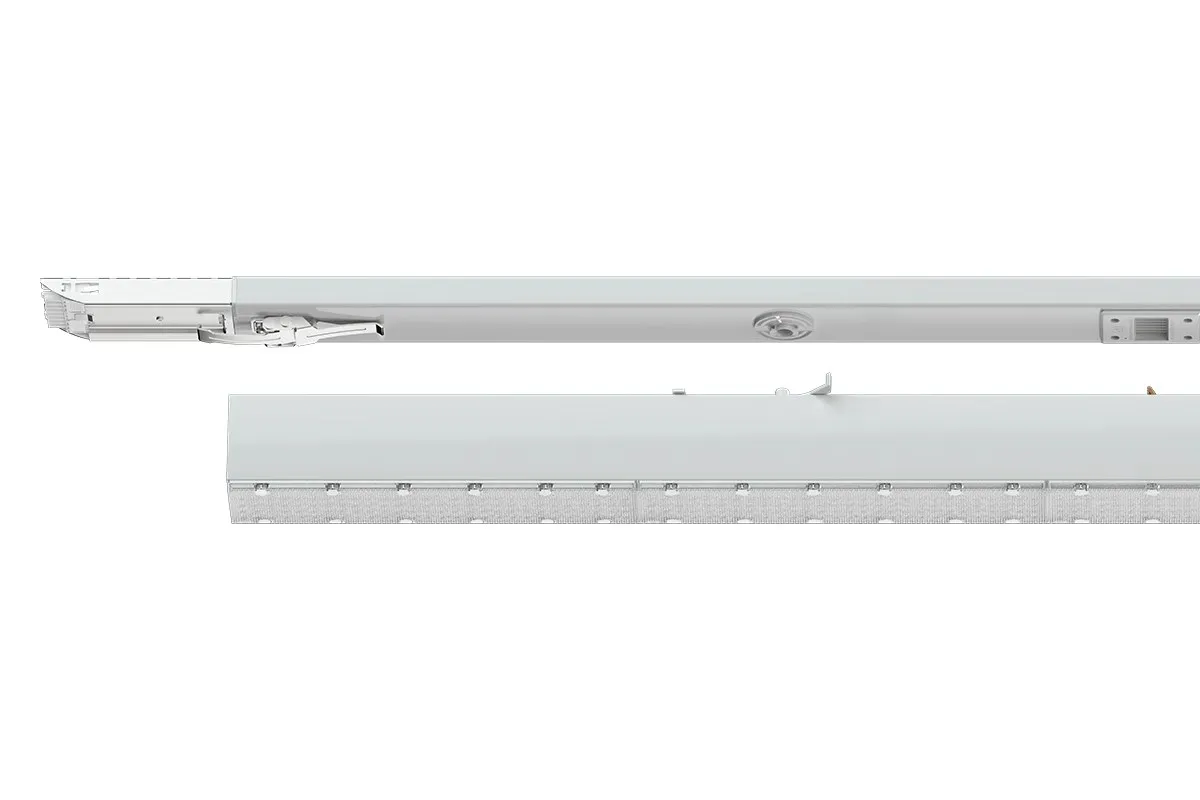

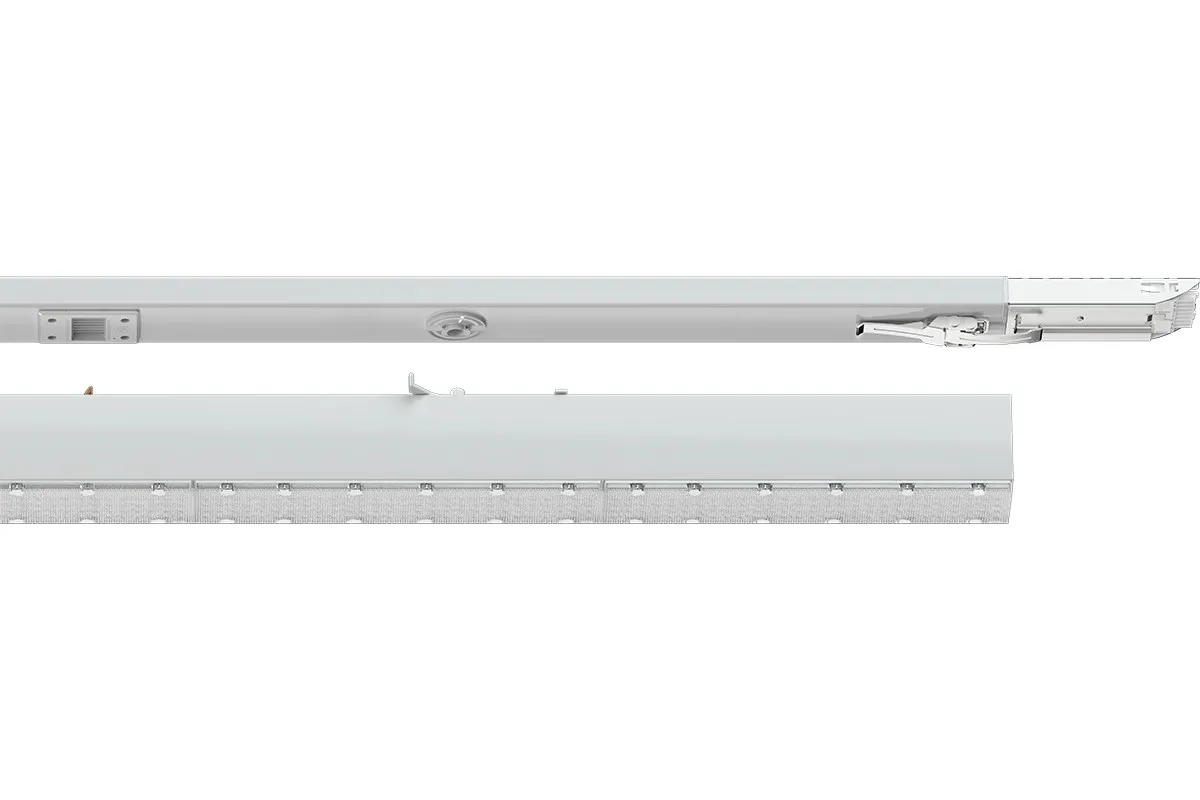

IP65 waterproof housing, IK08 impact resistance — engineered for harsh environments
Technical Specifications
| Parameter | CGL-1570 (70W) | CGL-15120 (120W) |
|---|---|---|
| Model No. | CGL-1570 | CGL-15120 |
| Outer Dimensions | 1500 × 77 × 67 mm | 1500 × 77 × 67 mm |
| Input Power | 70W | 120W |
| DIP Switch Options | 40 / 50 / 60 / 70W | 70 / 80 / 90 / 100 / 110 / 120W |
| Lumen Output | 12,600 lm | 21,600 lm |
| Input Current | 0.4A max | 0.7A max |
| Input Voltage | 220 - 240V | |
| Mains Frequency | 50 / 60 Hz | |
| PF (230V, 50Hz, full load) | 0.95 @ 230V, 50Hz full load | |
| Efficacy | 180 lm/W | |
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K | |
| CRI (Ra) | 80Ra / 90Ra | |
| R9 | > 0 | |
| SDCM | < 3 | |
| Beam Angle | 30° / 60° / 90° / 120° | |
| Dimming | ON/OFF · DALI DT6 · DIM Switch (1%-100% range on DALI) | |
| Lifetime (L70) | 50,000 hours (L70, Ta -25 ~ +40 ℃) | |
| Flicker Percent | ≤ 5% | |
| Flicker Metric | Pst LM ≤ 1.0 · SVM ≤ 0.4 | |
| IP Rating | IP65 | |
| Impact Rating | IK08 | |
| Operating / Storage Humidity | 10% - 85% | |
| Emergency Option | DC emergency / central safety emergency supply / built-in battery supply | |
| Mounting | Cord / Chain / Rod / Surface mounted / Mounting clip | |
| Warranty | 5 Years | |
Frequently Asked Questions
Is the G-LINE suitable for outdoor use?
How does the DIP switch power adjustment work?
What is the maximum run length on one 8-wire trunking rail?
Does G-LINE support emergency lighting?
What beam angle options are available?
How is the G-LINE installed?
Ready to Deploy G-LINE in Your Facility?
Get a model-specific quote, IES/LDT photometric files, and free DIALux simulation for your industrial, warehouse, or outdoor covered lighting project.
