Track Lighting — Spot Light Series

LED Track Spot Light

Precision accent lighting for retail displays, museums, galleries, and showrooms. High CRI (≥90) COB/SMD LED with adjustable beam angles and full dimming control for dramatic visual impact.

150 lm/W ≥90 CRI DALI / TRIAC Dimmable 5-Year Warranty
Get Quote View Specifications

Basic Information

Place of Origin Guangdong, China
Certification
CERoHSEMCLVDCB
Model Number FB-SPOT-15W-xx / FB-SPOT-25W-xx / FB-SPOT-35W-xx
Minimum Order Quantity 1 piece (sample order welcome)
Price Negotiable
Delivery Time 5 – 10 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20,000 – 25,000 pcs / month

Technical Specifications

Item LED Track Spot Light
Power (Wattage) 15W – 35W (compact models: 7W – 12W)
Input Voltage AC 220 – 240V, 50/60Hz
Luminous Flux 90 – 150 lm/W (1,300 – 4,000 lm per fixture)
CCT 2700K / 3000K / 4000K / 5000K
CRI (Ra) ≥ 80 (standard) / ≥ 90 (high-end for retail/gallery)
Beam Angle 15° / 24° / 36° / 60°
Light Source COB / SMD LED (Bridgelux, Osram, or equivalent)
Driver Integrated constant-current, dimmable (0–10V / TRIAC / DALI)
Beam Control Adjustable tilt 0–90°, rotation 0–360°
Track Compatibility 2-circuit (2C), 3-circuit (3C), 4-wire (Juno, Halo, Lightolier, EUTRAC)
Housing Die-cast aluminum (heat dissipation)
Finish Black / White / Gray
IP Rating IP20 (indoor dry)
Input Voltage AC220-240VAC / 100-277VAC
THD < 15%
PF (Power Factor) > 0.9
Lifespan 30,000 – 50,000 hours (L70/B50)
Warranty 5 years
Application Retail Store, Museum, Gallery, Car Showroom, Hotel, Restaurant

Product Description

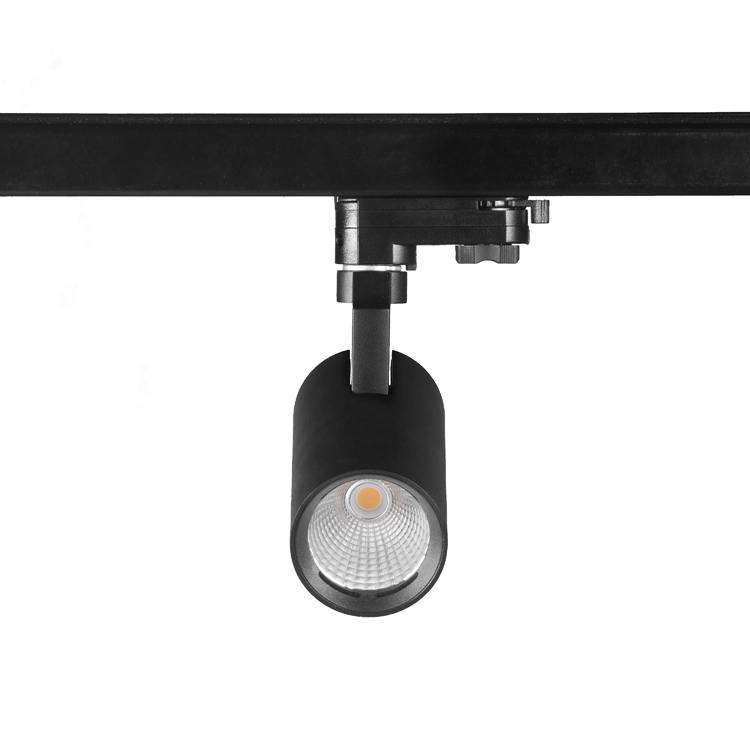

Precision Accent Lighting — The FusionBrite LED Track Spot Light delivers high-intensity accent illumination for retail displays, museum exhibits, and gallery showcases, with exceptional color rendering that makes merchandise and artwork pop.

COB & SMD LED Technology — Available with Bridgelux or Osram COB/SMD LEDs, our track spot lights achieve up to 150 lm/W efficacy with CRI ≥90 for high-end retail and gallery applications where color accuracy is critical.

Flexible Beam Control — Interchangeable beam angles (15° spot, 24° narrow flood, 36° flood, 60° wide flood) combined with 0–90° tilt and 360° rotation provide precise light placement for any display geometry. Compatible with 2C, 3C, and 4-wire track systems including Juno, Halo, Lightolier, and EUTRAC.

LED Track Spot Light technical specifications diagram

Key Features

Engineered for precision, built for performance

High CRI ≥90

Superior color rendering for retail displays and galleries. Colors appear vibrant, natural, and true-to-life — essential for fashion, jewelry, art, and produce lighting.

Multiple Beam Angles

Choose from 15° (spot), 24° (narrow flood), 36° (flood), or 60° (wide flood). Interchangeable optics provide the flexibility to highlight a single product or wash an entire display wall.

DALI / TRIAC Dimmable

Full dimming flexibility with 0–10V, TRIAC, and DALI options. Create layered lighting scenes in retail spaces — dim for ambiance, brighten for detailed inspections.

Wide Track Compatibility

Compatible with 2-circuit, 3-circuit, and 4-wire track systems including Juno, Halo, Lightolier, and EUTRAC. Perfect for retrofit and new installations alike.

Beam Angle Selection Guide

Choose the right beam angle for your application

15°

Spot

Accent on small objects, jewelry, mannequins

24°

Narrow Flood

Focal lighting on medium displays, wall art

36°

Flood

General retail shelving, product rows

60°

Wide Flood

Wall washing, ambient area illumination

Why Choose FusionBrite Track Spots

Superior build quality with global certifications

5 Years Warranty
CE / RoHS Certified
Die-Cast Aluminum Housing
Excellent Heat Dissipation
DALI & TRIAC Dimmable
Tool-Free Rotation
Interchangeable Optics
Low Glare Design

Frequently Asked Questions

Everything you need to know about our LED Track Spot Light

What track systems are compatible with this spot light?
Our LED track spot lights are compatible with 2-circuit (2C), 3-circuit (3C), and 4-wire track systems including Juno, Halo, Lightolier, and EUTRAC. Please specify your track type when ordering so we can configure the correct adapter.
Can I change the beam angle after installation?
Yes, the beam angle optics are interchangeable. You can swap between 15°, 24°, 36°, and 60° optics to adjust the beam spread for different display requirements.
Is the fixture dimmable?
Yes, our LED track spot lights support 0–10V, TRIAC, and DALI dimming protocols, giving you full control over lighting scenes and ambiance.
What is the difference between COB and SMD LED?
COB (Chip-on-Board) provides a single-point light source with a sharp, well-defined beam — ideal for precise spotlighting. SMD (Surface-Mount Device) offers a slightly softer beam edge and is often more cost-effective. Both options are available with Bridgelux or Osram LEDs.
What color temperatures are available?
We offer 2700K (warm white, ideal for hospitality), 3000K (warm for retail), 4000K (neutral for commercial), and 5000K (daylight for industrial). Selectable CCT models are also available.
What is the warranty period?
All our LED track spot lights come with a 5-year warranty covering manufacturing defects and performance degradation.
Can I get a sample before bulk order?
Yes, sample orders are welcome. We can provide 1–2 units for you to test and evaluate quality, light output, and compatibility with your existing track system.
Are these fixtures certified for the European market?
Yes, our LED track spot lights are CE, RoHS, EMC, LVD, and CB certified — fully compliant with EU market requirements including EPR/WEEE directives.

Ready to Elevate Your Displays?

Contact our team for custom configurations, bulk pricing, and free lighting design consultation.

Get a Quote Email Sales Team
